Wholesale | Boomr Bin Monotub Automated Tech Kit

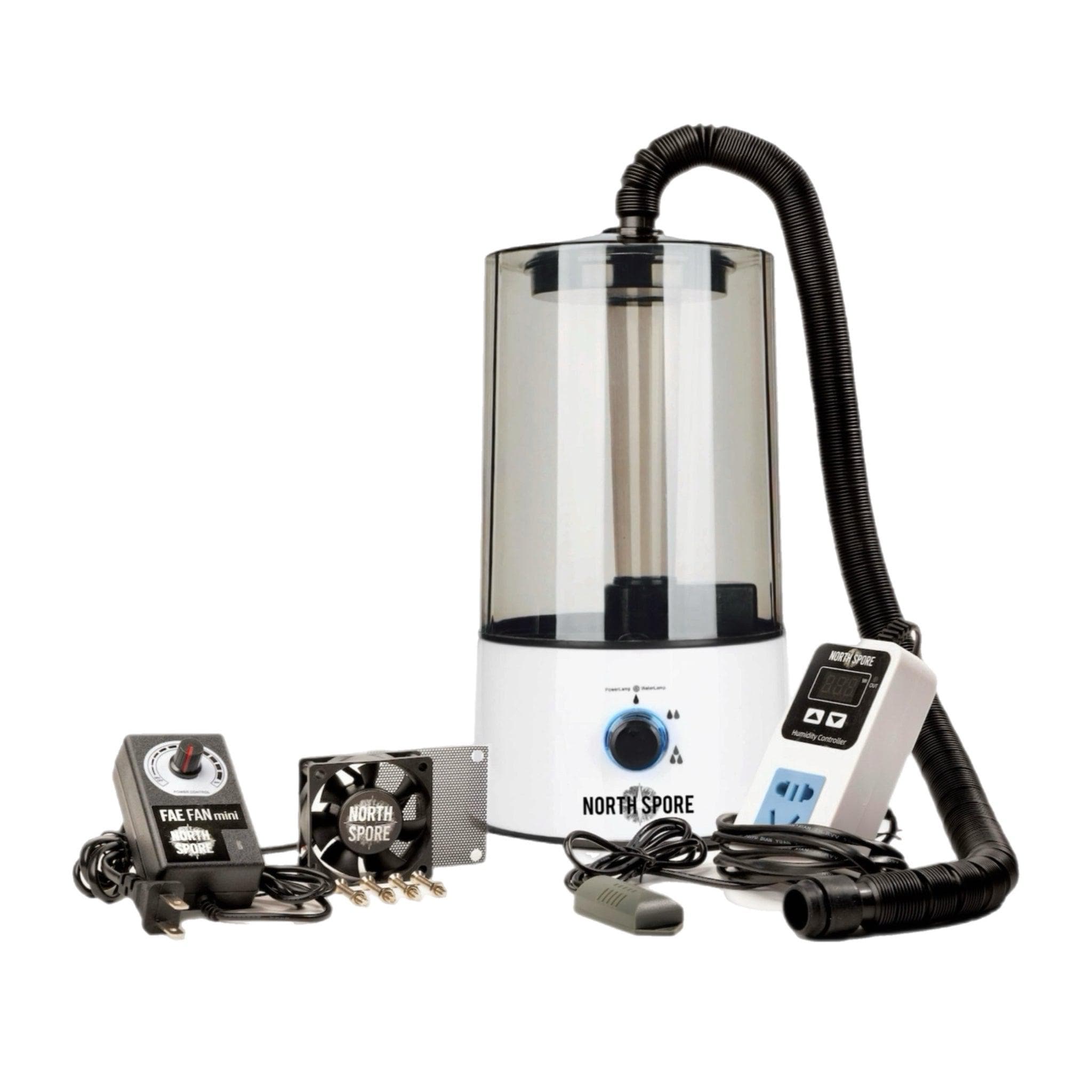

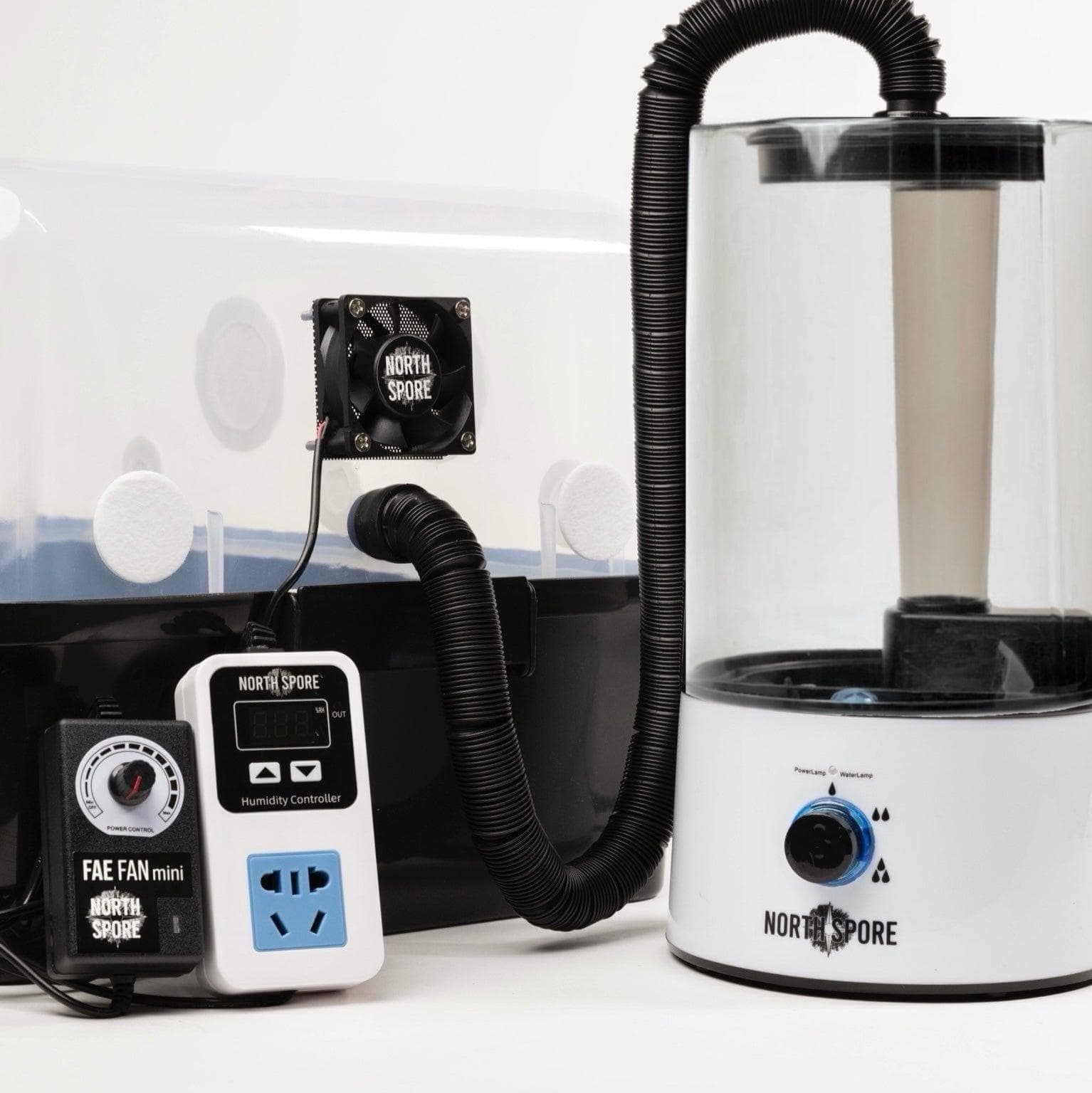

Upgrade your Boomr Bin Monotub with this automated tech kit, featuring a fresh air fan, humidifier with hose, monotub hose connector, and humidity controller with sensor. This easy-to-install kit allows you to upgrade your Boomr Bin to allow for better control of humidity, CO2 levels, and fresh air exchange. Plus, the fan also includes a removable washable screen for better spore filtration.

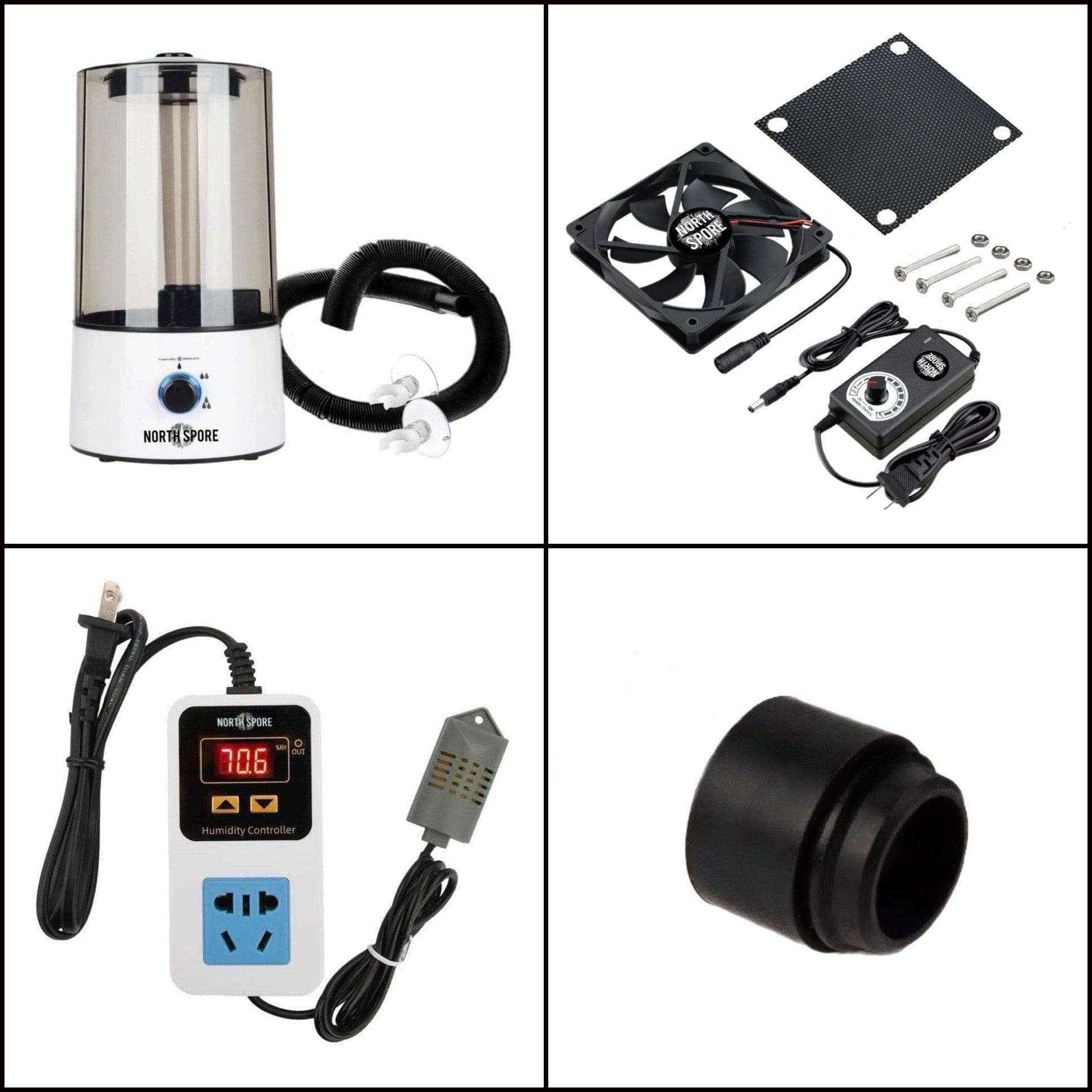

Automated system includes:

Using automated tech kit:

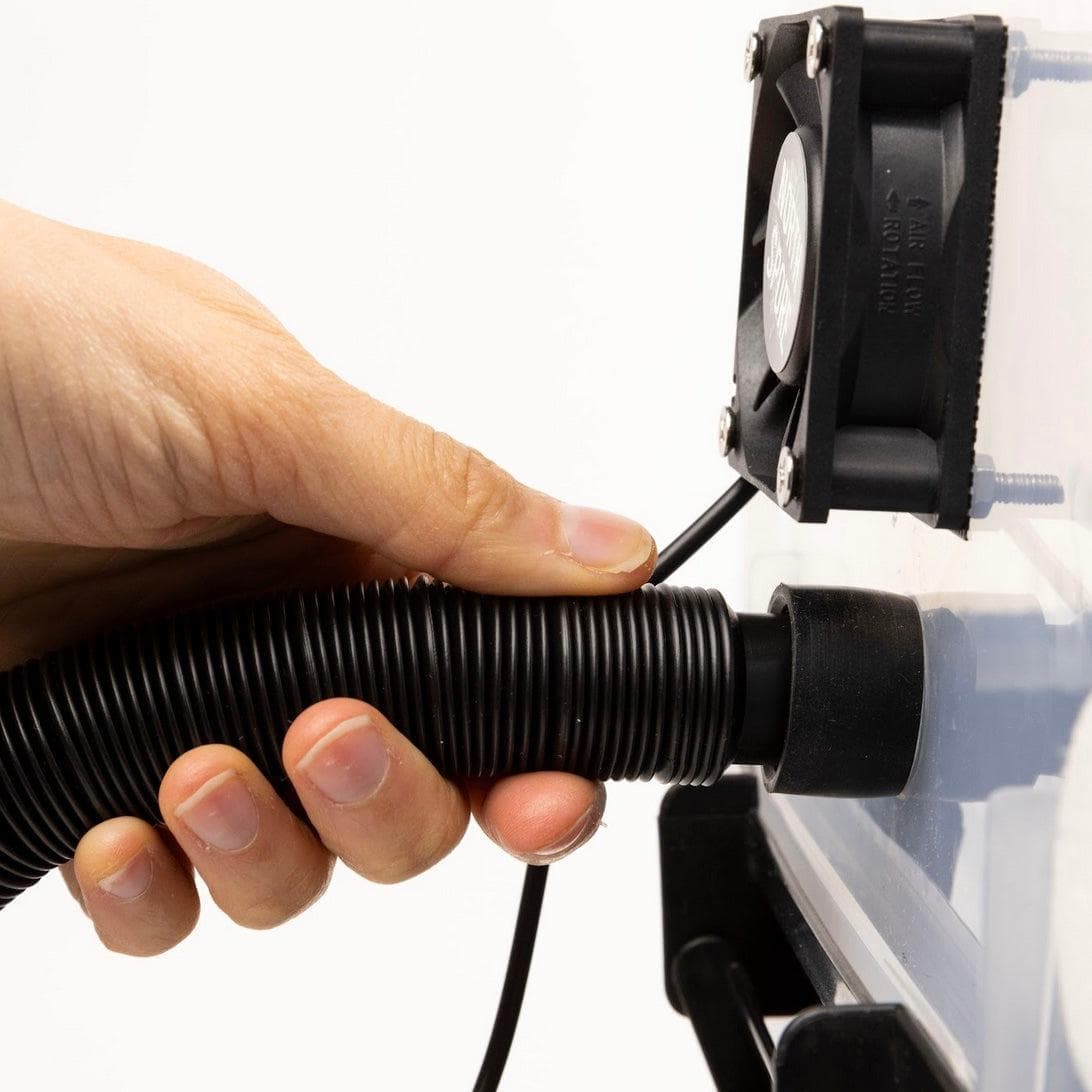

  • Once monotub is fully colonized, remove the self-adhesive filters on one end of the lid to hook up the FAE Fan Mini and Myco-Mister Mini Humidifier with hose.

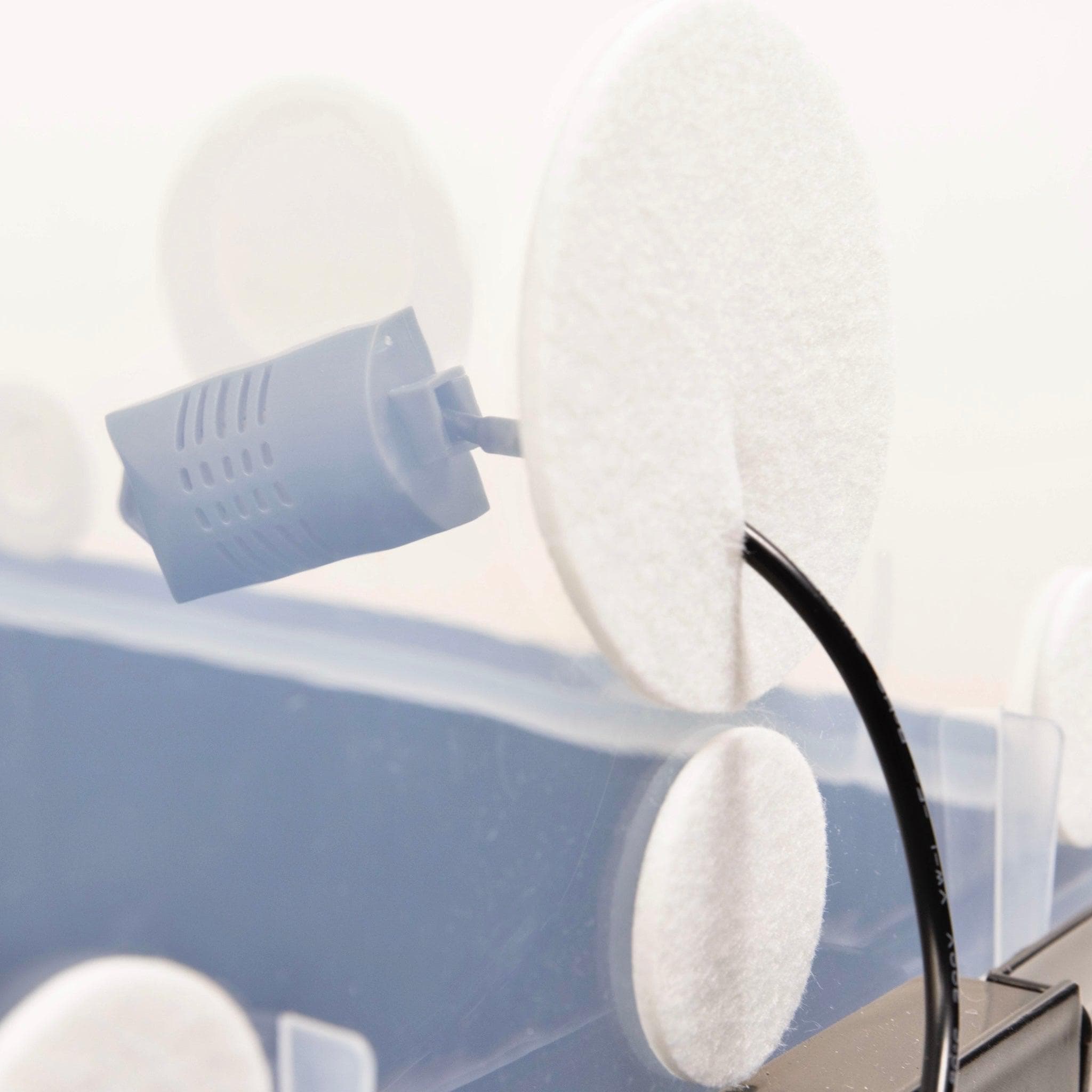

  • On the opposite end of the lid, cut a one-inch slice into the 2" filter and slide the MYCOntroller Humidity Controller probe inside.
  • These additions will allow you to optimize fresh air exchange, CO2 levels, and humidity levels for the specific species you are growing.
Tech specifications

Myco-Mister Mini Humidifier

  • Capacity: 4L
  • 110-240V; 50/60Hz
  • Max Usage Area: 215 Sq ft
  • Max Evaporation: 380ml/H

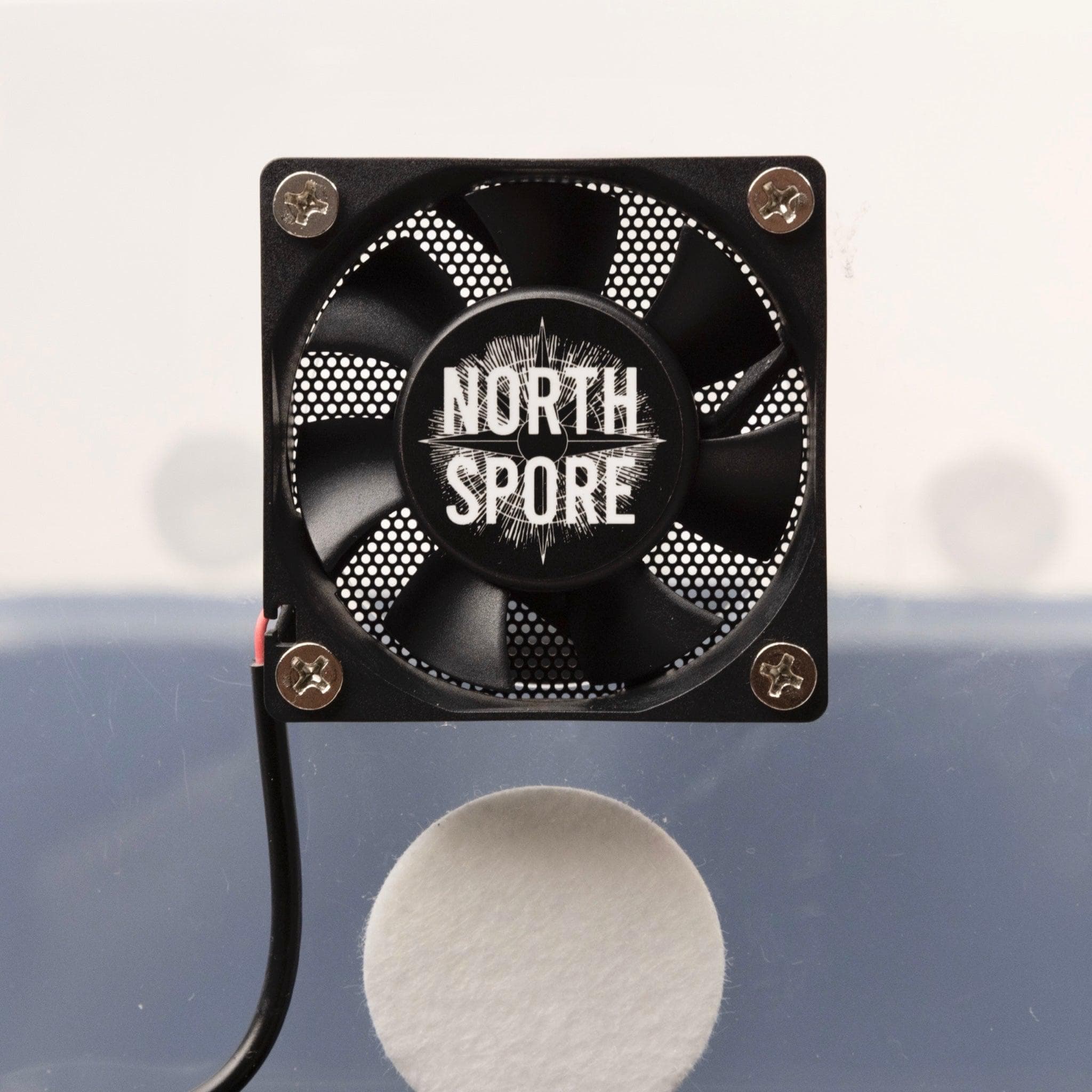

FAE Fan Mini

  • 110-220VAC/50Hz
  • 0.05A (Max. 0.06A)

FAE Fan Power Controller

  • AC/DC Adapter
  • Input: AC100-240V; 50/60Hz
  • Output: 3V-12Vā€”2A

MYCOntroller Humidity Controller

  • 110-220V
  • Measurement range: 0%RH-99%RH
  • Control accuracy: 0.1%RH
  • Output type: Direct output
  • Output capacity: Max 10A
User guide

Click here to download pdf

Humidifier instructions

Click here for PDF

FAE Fan instructions

Click here for PDF

Humidity controller instructions
  • First, plug the humidity controller device into wall.
  • Next, set humidity range.
    • Press and hold the "UP" button for 3 seconds, and the humidity value will flash. Set the high value. (For example, 90%)
    • Wait for a few seconds to automatically return to main interface.
    • Press and hold the "DOWN" button for 3 seconds, and the humidity value will flash. Set the low value. (For example, 75%)
  • Finally, plug humidifier into device.
  • Humidifier will turn ON when device falls below the lowest humidity setting and OFF when it reaches the highest humidity setting.
Maintenance & storage

WARNING: Do not clean humidifier while the unit is switched on. Turn off the power and unplug the unit from its power source before any cleaning or maintenance.

HUMIDIFIER WATER TANK

  • DO NOT leave water sitting stagnant in tank for more than a couple of days as it may cause bacterial growth. Always empty tank if not planning to use it for a few days.

HUMIDIFIER STORAGE

  • When not in use, store in a cool dry location in original packaging or completely covered (to prevent dust buildup).
  • If water is left in the unit during storage, it may harden and leave deposits that may affect the unit from operating properly.
  • Leave the cap of the water tank loose during storage. This will prolong the life of the gasket.

HUMIDIFIER CLEANING

  • DO NOT use detergents or chemicals to clean the tank or base as it can interfere with the mist.
    • If the water tank is dirty, soak it with a mild bleach and water solution (1 cup of bleach + 1 gallon of water) and rinse clean.
    • Wipe the exterior of the body with a damp cloth.
    • Clean and rinse the water tank and mist nozzle with lukewarm water frequently to avoid mineral buildup.
  • Keep the nebulizer and water sensor free of mineral deposits.
    • Only clean the nebulizer and sensor with a soft brush (e.g. soft toothbrush).
    • DO NOT scrape the nebulizer or water sensor to avoid damage.
    • DO NOT clean with tools that have metal parts.
  • DO NOT spray water or any liquids onto the control knob.
  • NEVER immerse the base in water or let water enter other openings.
